"EM IFP Premium 5" AA Inline main filter stage Carbonit & Prime Inventions
179,90 €
Tilgængelig, leveringstid: 1-3 Tage
Produktinformation ""EM IFP Premium 5" AA Inline main filter stage Carbonit & Prime Inventions"
Water filtration and taste improvement of the water combined in one water filter. Especially applicable at low line pressure as main filter of the AquaAvanti Inline series with quick-change housings and original CARBONIT filter.
This main filter stage is the basic system that can be used as the sole filter system. In addition, it is the basis for one or two extension stages.
Advantages of the Aqua Avanti Inline system compared to conventional filter housings
Forget about dismantling and unscrewing filter housings to change filters. With the AA Inline filter system, you can change filter cartridges in seconds. Simply remove the filter cartridge by turning it counterclockwise and insert a new filter cartridge the other way around. Done. You no longer need a housing key. Since you do not come into contact with the inside of the filter cartridge, the replacement is very hygienic.

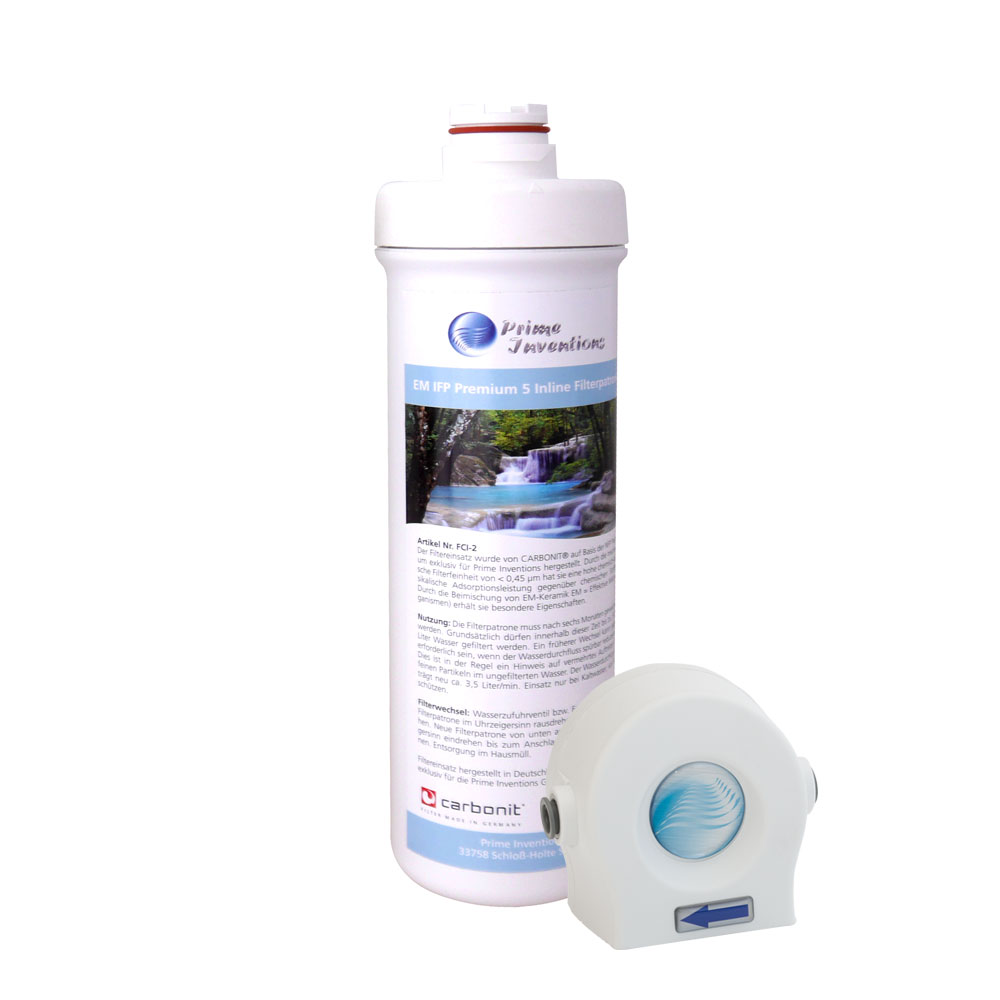

Description of the EM IFP Premium 5 Inline filter
This filter cartridge was manufactured by CARBONIT® based on the NFP Premium exclusively for Prime Inventions. Due to the mechanical filter fineness of < 0,45µm it has a high chemical-physical adsorption performance against chemical substances. Micro- or nanoplastics, heavy metals, pesticides, chlorine and hormones can be filtered. The filter cartridges produced by CARBONIT® combine water filtration and a taste improvement of the water. For the production, a special EM ceramic is added to the activated carbon filter during the process of sintering. This ceramic causes, among other things, a reduction of the surface tension of the water and the reduction of the cluster structures. As a result, the taste of the water is described by most people as softer or rounder.
IFP type filter cartridges are ideal for retaining potential pollutants in drinking water systems. Pollutants of anthropogenic origin, which could accumulate in the organism, are reliably removed and stored. The IFP activated carbon filter block has a standard thin wall for liquid treatment at low line pressure.
Connections (standard connection set is included)
The included faucet adapter has a 3/8" standard thread and thus fits to the faucets offered by us mesiten of. An adaptation to other threads e.g. UNS 7/16-24 is of course optionally possible. For easy connection to the corner tap under the sink, a high-quality European connection adapter JG ASV-7 is supplied with each main filter stage, so that they do not need an additional corner valve with existing 3 / inch cold water connection. Also a leakage protection is supplied, which provides you with additional safety.
Additional accessories
As an alternative to the enclosed connection set, you can find suitable adapters in the Accessories & Spare Parts category for easier, space-saving installation.
Optionally available are:
- Connector
- Adapter DM 3/8 inch to 3/8 inch 90 degree
- 3/8 inch connection hose, AA inline filter
Usage: The filter cartridge must be replaced after six months. Generally, up to 5,000 liter of water may be filtered within this time. However, an earlier change may be necessary if the water flow is noticeably reduced. This is usually an indication of increased occurrence of fine particles in the unfiltered water. The new water flow rate is approx. 4 liters/min. Use only with cold water, protect from frost.
| Durchfluss: | max. 4 l/min |
|---|---|
| Einsatzdauer max.: | 6 Monate |
| Filterfeinheit: | 0.45 |
| Filtrationskapazität max. l (DIN 1988): | 5000 |
Height with filter head: approx. 33 cm
Width filter head: approx. 10 cm (with 90 ° connections approx. 16 cm)
Width filter: approx. 9 cm
Length of tubes: 80cm
