BIGGREEN limescale protection, sediment & activated carbon filter plant

799,00 €*

Indhold: 1 Stück

Priser er inkl. moms dertil kommer fragt

Tilgængelig, leveringstid: 1-3 Tage

Stück

Natürlicher Kalkschutz, Sediment- & Schadstofffiltration für bis zu zwei Wohneinheiten. Dieser chemiefreier Kalkschutz ist eine anerkannte Biotechnologie und durch den Verzicht auf Salz, sehr nachhaltig und öklogisch. Seit 2009 ist in der EU-Norm EN 1988-20 Ziff. 12,7 (Technische Regeln der Trinkwasserinstallationen) festgeschrieben, dass Kalkschutzgeräte mit Impfkristallisation für Trinkwasserinstallationen zugelassen sind und dem Stand der Technik entsprechen. Diese Methode, auch unter der Abkürzung TAC (Template Assisted Crystallization) bekannt, die auf der Grundlage der Impfkristallisation arbeitet, erfüllt die Anforderungen an die „Allgemeinen Regeln der Technik“.

Varenummer: 1873

Hersteller: CANPRO

EAN: 4250188803481

Produktinformation "BIGGREEN limescale protection, sediment & activated carbon filter plant"

The patented BIG GREEN ™ from the Canadian manufacturer CANPRO is a real innovation. It protects your house installations and all devices that come into contact with hot water from limescale deposits in an environmentally friendly and sustainable manner. The lime treatment is based on the so-called TAC technology (Template Assisted Crystallization), which does not require any salt. The BIG GREEN ™ is very compact and fits into your house connection room even in tight spaces. Thanks to the two-stage high-flow filtration (20 µm sediment / 10 µm activated carbon filter) it can reliably remove microplastics, chlorine, drug residues and pesticide residues. Reduce or even remove hormone-like substances. The taste of your water is also optimized and unpleasant odors are also significantly reduced.

The advantages of this innovative combination filter device

• Chemical-free limescale protection

• sustainable as no salt is required

• Limescale protection, pollutant & sediment filtration in one device

• no electricity is required

• compact design

•easy construction

• almost maintenance-free

• The filter change is easy to carry out

Functionality

After your house water has been pre-filtered, in the BIG GREEN ™ it first flows through the outer filter cartridge (sediment & activated carbon and then enters the TAC filter. Microscopic seed crystals now form on the surface of the TAC granulate. These crystals envelop the im Water dissolved lime without changing it chemically. With this process, the lime in pipes and devices no longer adheres so strongly and even limescale deposits in pipes and devices are removed in a continuous process. With the BIG GREEN ™ you can Protect the entire piping system as well as large appliances such as washing machines, dishwashers and other hot water devices from limescale deposits without using salt.

Installation

The BIG GREEN ™ (patent number EP3636598) should be installed after the water meter and a house inlet filter (DIN 1988). A functioning equipotential bonding must be available in the house. The assembly of the very valuable device is very easy to carry out.

Maintenance & cartridge change

The device is almost maintenance-free and should only be cleaned every time the filter is changed. The service life of the sediment & activated carbon unit is normally 6-12 months, that of the TAC unit at least 3 years.

Scope of delivery

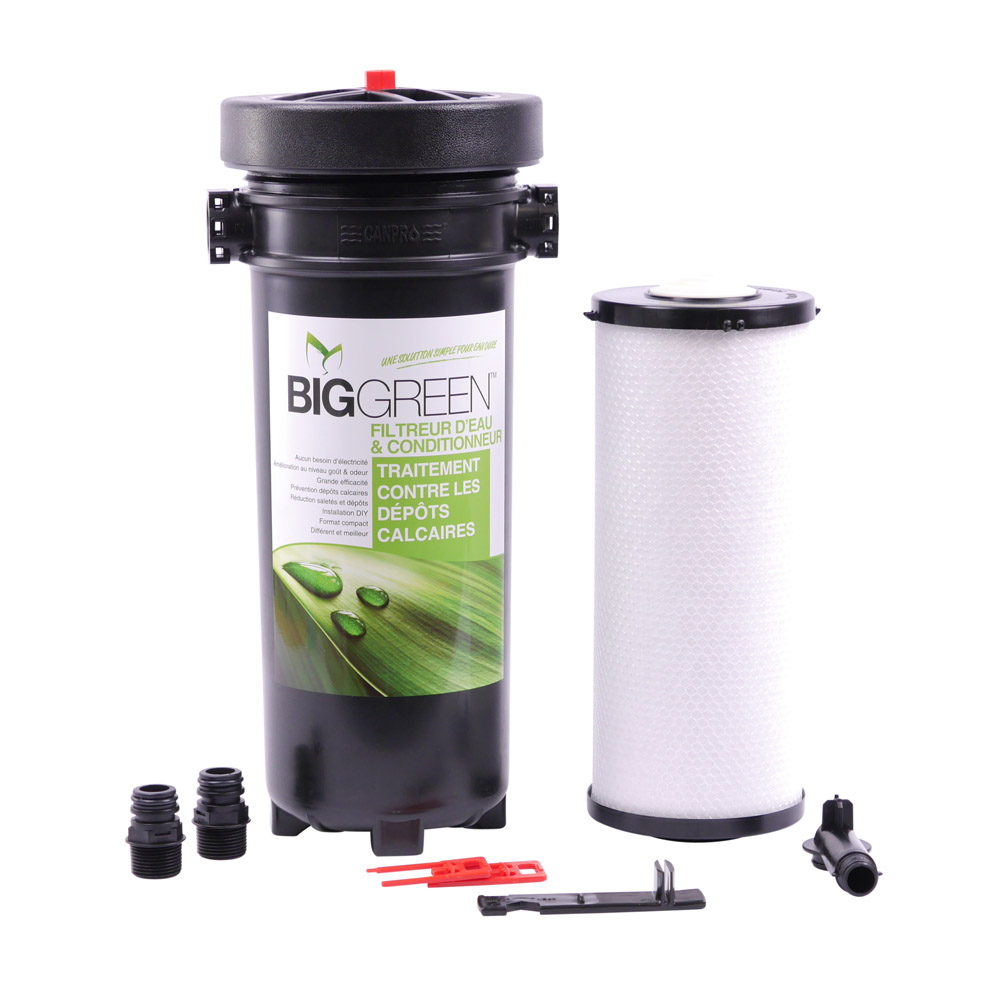

Filter housing, wall bracket, connection nipple, sediment & activated carbon cartridge, limescale protection cartridge

Procedure: Template Assisted Crystallization (TAC); homogeneous catalysis (active limescale protection)
Patent number: EP3636598, international
Areas of application: one- and two-family houses, gastronomy, etc.
Scope of delivery: Housing with wall bracket and nipples, sediment activated carbon cartridge, TAC cartridge
Volume flow: no significant resistance (at l / min.)
Flow rate: max. 2.2 m³/h (depending on water pressure, existing pipe diameters and service life of the cartridge)
Operating pressure: from> 4.8 bar use a pressure reducer
Operating temperature: 5 ° - 40 ° C
Water connection: 1/2 "inch to 1" inch external thread
Change interval: service life of sediment filter and activated carbon every 6 to a maximum of 12 months
Sediment filter fineness: 20 µm
Activated carbon filter fineness: 10 µm
Dimensions: diameter 254 mm, length 457 mm
Weight: dry with inserts approx. 7.5 kg
Examination: NSF® certification, EU conformity
Operating limits max .: pH 6.5-8.5, iron 0.2 mg / l, manganese 0.05 mg / l, for water according to the drinking water ordinance
