Anti limescale AA Inline main stage filter

189,00 €*

Indhold: 1 Stück

Priser er inkl. moms dertil kommer fragt

Tilgængelig, leveringstid: 1-3 Tage

Stück

AquaAvanti Inline series with quick-change housings as an under-sink system for chemical-free limescale protection. Manufacturer of this water filter system is the company Prime Inventions. Connection material and a leakage protection is already included in the set. Made in Germany.

Varenummer: 1336

Hersteller: Prime Inventions GmbH

EAN: 4250188802736

Produktinformation "Anti limescale AA Inline main stage filter"

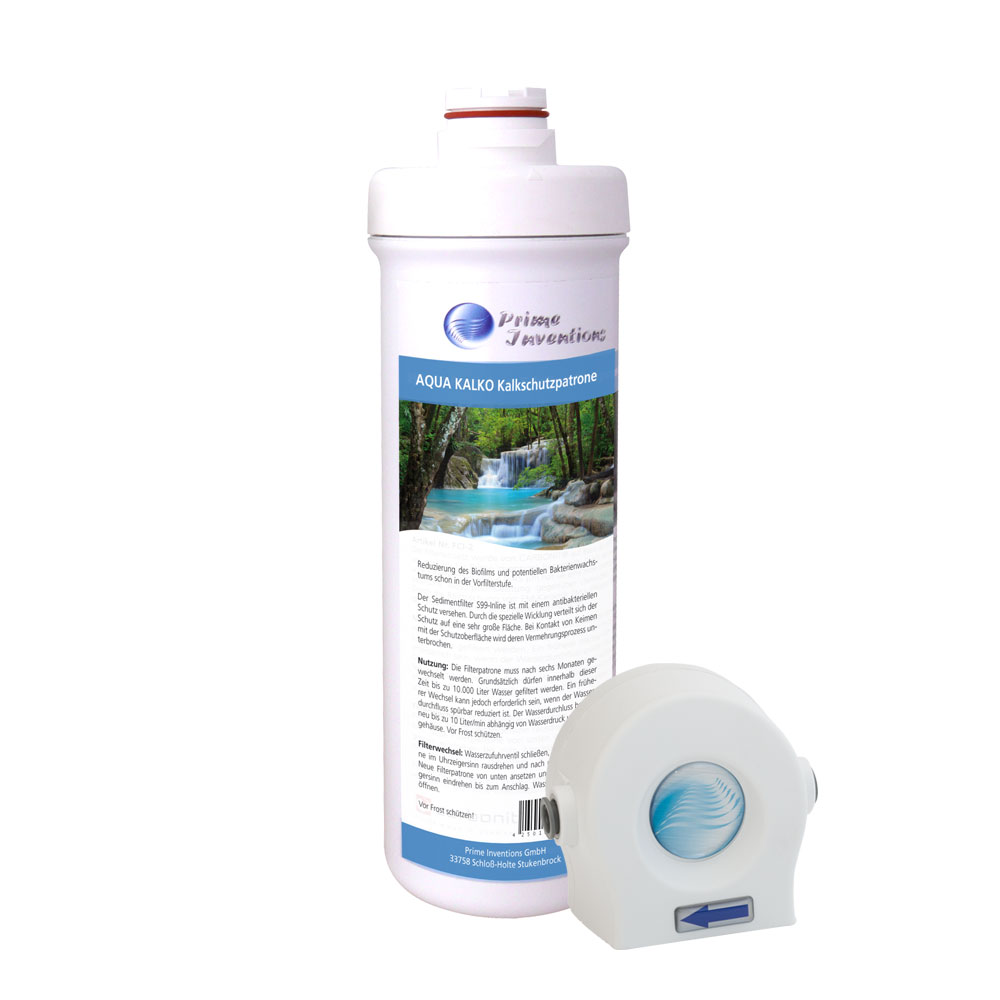

Water filter under-sink solution for protection against limescale (limescale protection by seed crystals) of the Aqua Avanti Inline series with the innovative quick-change housings. This main filter stage is the basic system that can be used as the sole filter system. In addition, it is the basis for one or two expansion stages.

Description of the Filter Limescale Protection Inline

The system provides chemical-free limescale protection with the innovative Aqua-Avanti Inline filter system. The flow-through catalyst granulate works according to the seed crystal principle. In this process, precipitating lime is bound to the seed crystals and floats away in the water. The process serves to protect the pipe and equipment. Limescale deposits can be removed more easily after use, but the limescale is not removed.

Advantages of the Aqua Avanti Inline system compared to conventional filter housings

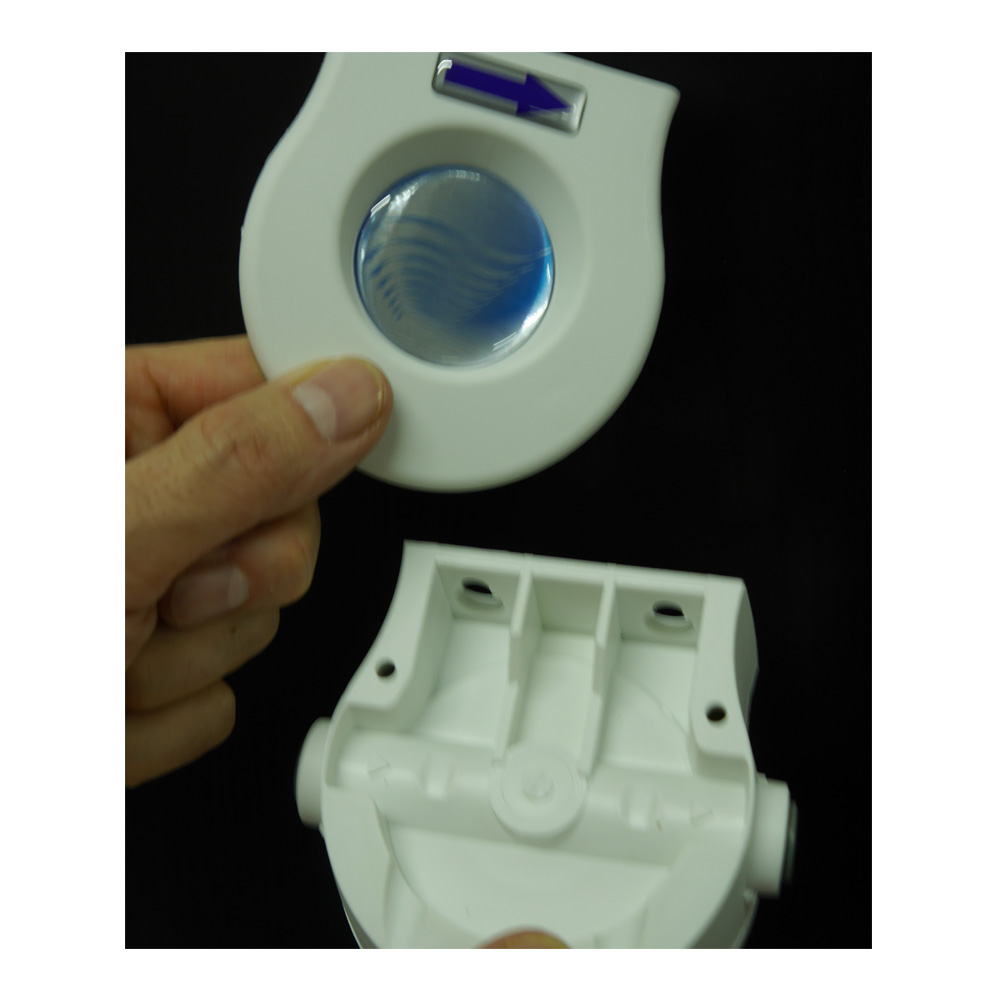

Forget about dismantling and unscrewing filter housings to change filters. With the AA Inline filter system, you can change filter cartridges in seconds. Simply remove the filter cartridge by turning it counterclockwise and insert a new filter cartridge the other way around. Done. You no longer need a housing key. Since you do not come into contact with the inside of the filter cartridge, the exchange is very hygienic.

Connections (standard connection set is included)

The included faucet adapter has a 3/8" standard thread and thus fits to most of our offered faucets. An adaptation to other threads e.g. UNS 7/16-24 is of course optionally possible. For easy connection to the corner tap under the sink, a high-quality European connection adapter JG ASV-7 is supplied with each main filter stage, so that they do not need an additional corner valve with existing 3 / inch cold water connection. Also a leakage protection is supplied, which provides you with additional safety.

Additional accessories

As an alternative to the enclosed connection set, you can find suitable adapters for easier, space-saving installation in the Accessories & Spare Parts category.

Optionally available are:

-Connector
-Adapter DM 3/8 inch to 3/8 inch 90 degree
-3/8 inch connection hose, AA inline filter
-flow regulator 1,9l min 3/8 inch inline

Important usage note: Water flow should not exceed approximately 3l/min. When used with potable quality water, the catalyst granules will last approximately 3 years. Use with cold water only.

Height with filter head: approx. 33 cm
Width filter head: approx. 10 cm (with 90 ° connections approx. 16 cm)
Width filter: approx. 9 cm
Length of tubes: 80cm

Prime Inventions GmbH
Berliner Str.
33334 Gütersloh
Deutschland
info@prime-inventions.de
