Effective leakage protection with smart internet app.
Syr Safe Tech+ Connect leakage protection protects against leaks, minimizes water damage and prevents water waste. It monitors water consumption with state-of-the-art electronics. If the individual consumption values are exceeded, the Syr Safe Tech+ Connect leak protection shuts off the pipe system and sends an email or notifies them via SYR APP. With the free SYR App, the Syr Safe Tech Plus Connect can be viewed and controlled via smartphone/tablet.
Why should I install such a system?
Over 3,000 tap water damages occur in Germany - every day! The intelligent, internet-enabled Syr Safe Tech+ Connect leak protection offers reliable protection against the expensive consequences of water damage.
This is how safe leakage protection works with the Syr Safe Tech Plus Connect leakage protection.
The "SYR Syr Safe Tech Plus Connect Leak Protection" uses state-of-the-art electronics to monitor the current water consumption every second and compares the measured values with a setpoint. If the individual consumption values are exceeded, it immediately shuts off the pipe system. If the Syr Safe Tech Plus Connect leak protection is online, it notifies you by e-mail. In places where monitoring is particularly intensive, the SafeFloor Connect wireless floor sensor can also be used and linked to the system. This further increases safety many times over.
Convenient features for operation and perfect control - the SYR App
Once a project has been created on the SYR Connect server, the user has a full overview of the installation and access to important parameters. Via smartphone, tablet or PC, he can set leakage protection levels, operate presence or absence functions, manage the absence calendar and control linked SafeFloor Connect wireless floor sensors.
Perfectly combinable

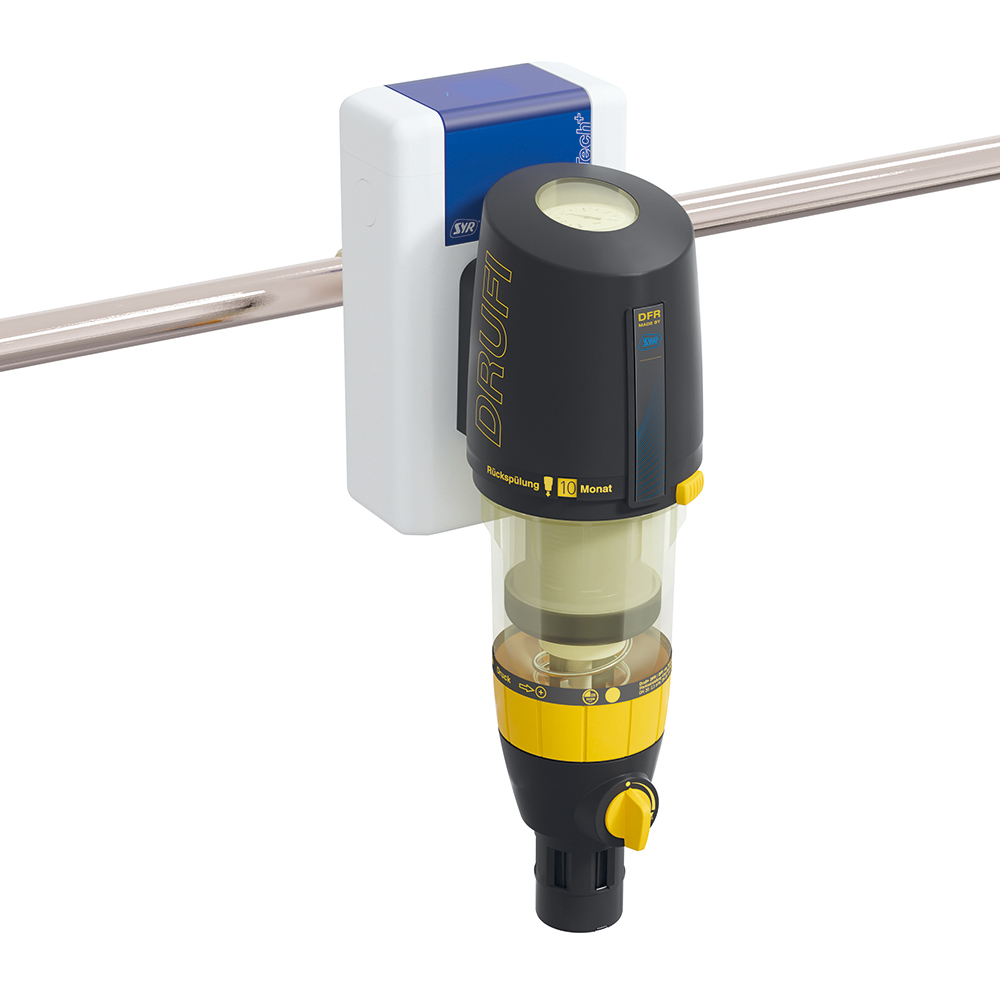

The Syr Safe Tech+ Connect leak protection is installed on the SYR universal flange. It is therefore quite practical if the SYR DRUFI drinking water filter is already present: the Syr Safe Tech Plus Connect leak protection can then - without having to change the installation - simply be retrofitted.
The advantages at a glance
- integrated WLAN & LAN
- intelligent self-learning phase
- Control and monitoring via SYR App possible
- push notifications/emails in online mode
- vacation monitoring and special absence function
- perfect combination with the SYR DRUFI: the SafeTech+ Connect fits between DRUFI and flange
- can communicate with one or more SafeFloor Connect floor sensors
- emergency stop function
- in case of power failure emergency operation by battery
- determines the hardness range of the water (conductivity), measures water pressure and water temperature
- several user profiles adjustable

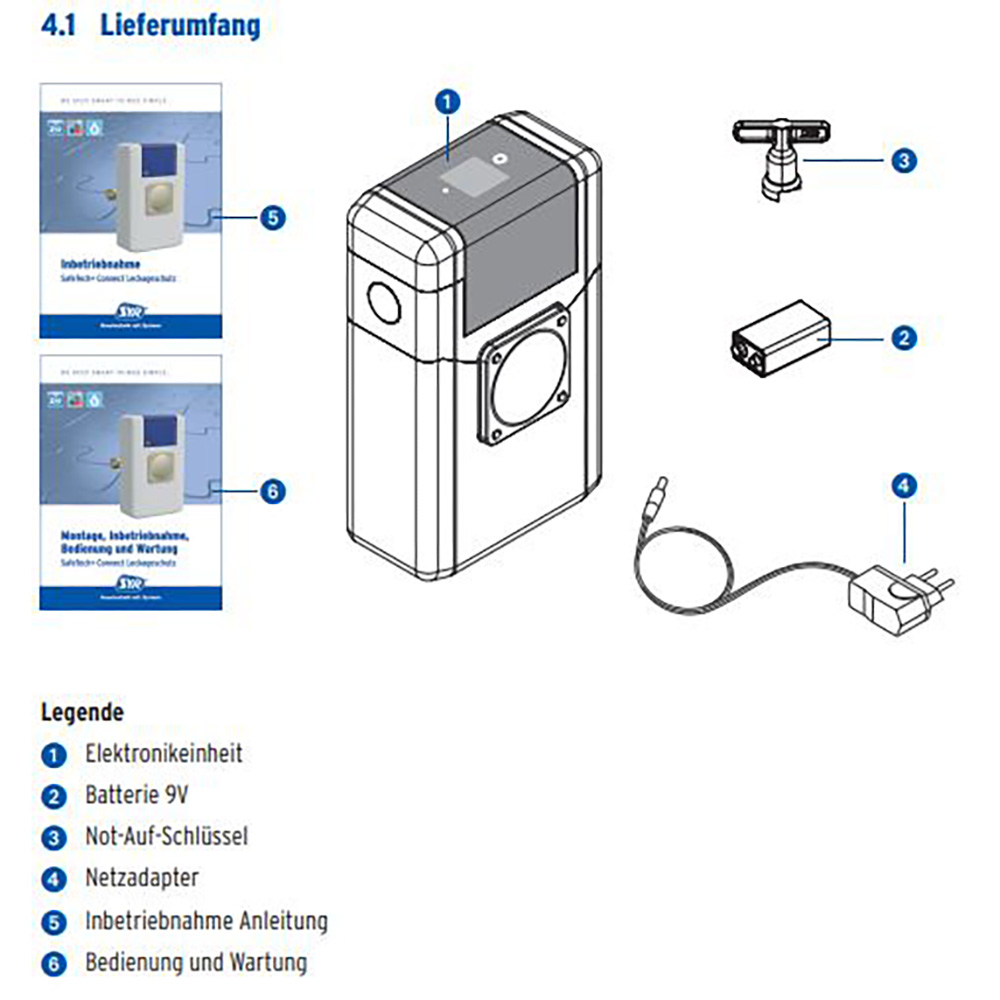

Scope of delivery
Electronic unit, battery 9V, emergency open key, power adapter, commissioning manual, operation and maintenance manual
Important: SYR connection flange must be ordered if not available, because it is not included in the delivery!
Ask your insurance company, it can be worthwhile
Many well-known insurers discount their premiums if a leakage protection is installed. Just ask and save additional money.
Operating temperature: 10 - 60 °C
Ambient temperature: 10 - 60 °C
Nominal pressure: 16 bar
Installation position: Main axis horizontal
Medium: Drinking water
Protection class: II (insulated)
Batteries: 1 x 9V block (6LR61)
Power supply voltage: 12 V / 50 Hz
Network support: TCPIP/IPv4, expandable to TCPIP/IPv6
MQTT via port 8883
Start-up threshold: 3 litres/h
Flow rate: DN 20: 5.2 m3/h at 1.0 bar ∆p
DN 25: 5.7 m3/h at 1.0 bar ∆p
DN 32: 6.0 m3/h at 1.0 bar ∆p
Works no.: 2422.00.010
Nominal size: DN 20 - 32
Dimensions H (mm) 240.0 L (mm) 146.0 W (mm) 75.0
