Water filter SYR DRUFI + DFR with pressure reducer

169.00€ *
Content: 1 piece

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • DRUFI + DFR semi-automatic backwash filter with pressure reducer, manometer, drain funnel (according to DIN EN 1717), output pressure adjustable from 1.5 to 6 bar (4 bar ex works). Incl. Molded seal, screws and assembly Allen key.

    • 1834
    • 4356487192711

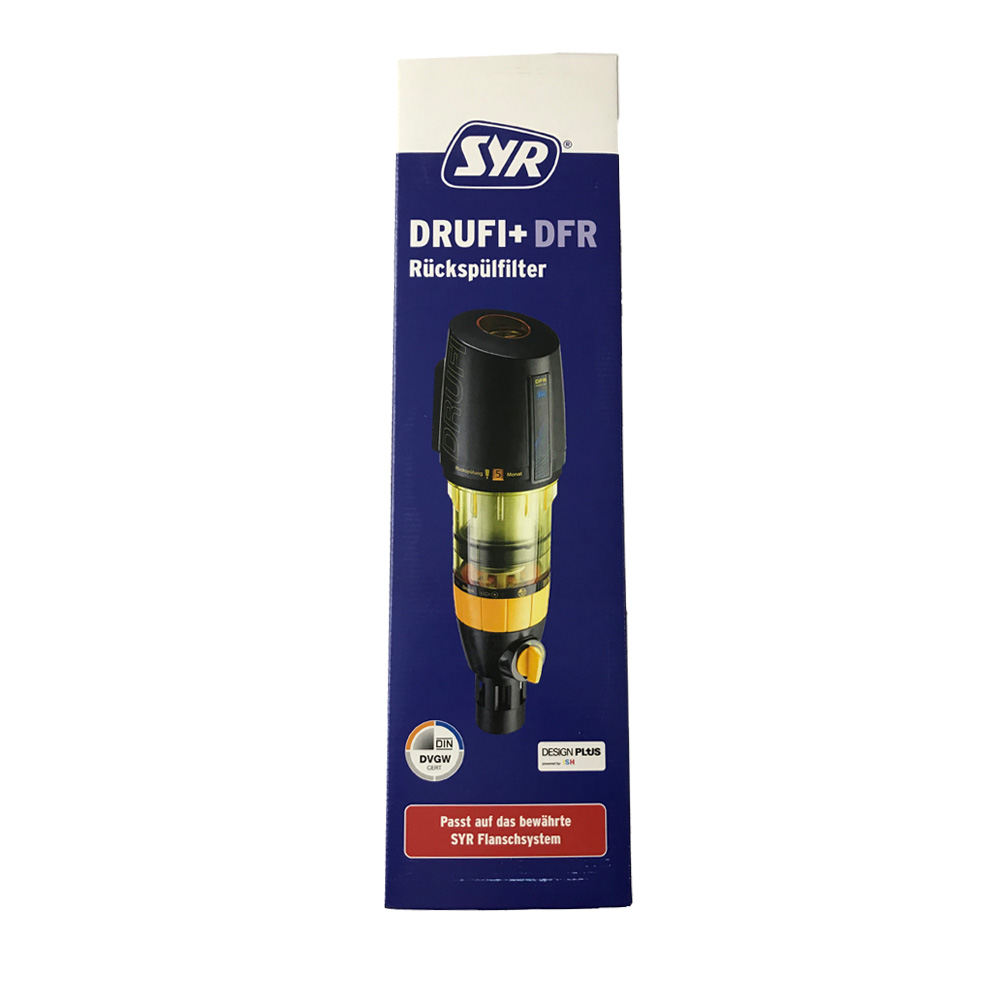

    The SYR Drufi + DFR is a combination of fittings, specially developed for house entrance... more
    Product information "Water filter SYR DRUFI + DFR with pressure reducer"

    The SYR Drufi + DFR is a combination of fittings, specially developed for house entrance installation in accordance with DIN 1988, consisting of a semi-automatic backwash filter in accordance with DIN EN 13443-1 and a pressure reducer in accordance with DIN EN 1567. The Drufi + DFR combines the latest technology and the highest quality workmanship. Connected to a DN 50 drainage pipe, the integrated funnel directs the backwash water into the sewage system.

    Since the Drufi + DFR is equipped with a display ring for maintenance reminders according to DIN 1988, you always have the next backwash in view. In the case of the Drufi + DFR valve combination, the correct installation sequence according to DIN 1988 is observed. The Drufi flange program is used for installation in the pipeline. The flanges can be installed in vertical and horizontal lines. The built-in pressure reducer enables individual pressure setting and completes the excellent properties in the smallest of spaces. The Drufi + DFR consists of a mechanically acting, semi-automatic backwash filter. In addition, it is equipped with a flange seal, hexagon socket screws for flange mounting and an assembly key for the hexagon socket screws. The pressure reducer insert is set at the factory to 4 bar output pressure, whereby the external adjustment handle allows an individual pressure setting between 1.5 and 6 bar. An outlet pressure manometer is also part of the equipment of the Drufi + DFR.

    The filter cup is made of high quality plastic. The housing and the internal plastic parts are made of impact-resistant thermoplastic, the rubber parts are made of age-resistant elastomers. A low-lead, dezincification-resistant gunmetal alloy or stainless steel is used for all other functional parts. The ring seals used are made of asbestos-free fibers. All materials correspond to the recognized rules of technology. The plastic parts and elastomers that come into contact with water correspond to the KTW guideline of the Federal Environment Agency.

    The advantages at a glance

    • prevents pitting and corrosion
    • high flow rate
    • Backwash system with strong effectiveness
    • Control elements marked yellow
    • Practical slide ring for maintenance reminders
    • UV protection against germs
    • Reminder function for backwashing through maintenance display
    • Accessories: RSA automatic backwashing system, can be retrofitted without tools
    • DVGW-tested security

    Our recommendation

    Be sure to order the SYR connection flange DN 20 to 32 if you do not already have it.

    Related links to "Water filter SYR DRUFI + DFR with pressure reducer"
    Operating pressure: min. 2 bar, max. 16 bar Operating temperature: max. 30 ° C... more
    Technical details "Water filter SYR DRUFI + DFR with pressure reducer"

    Operating pressure: min. 2 bar, max. 16 bar
    Operating temperature: max. 30 ° C
    Installation position: preferably main axis vertical
    Medium: drinking water
    Mesh size: lower: 90 μm, upper: 125 μm
    Flow rate: DN 20: 2.3 m3 / h at 1.1 bar Δp
    DN 25: 3.6 m3 / h at 1.1 bar Δp
    DN 32: 5.8 m3 / h at 1.1 bar Δp
    Factory number: 2315.00.080
