Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
Soft water throughout the house with the water softener LEX Plus 10 SL Connect from SYR - Color touch display for extremely easy operation. The SL model variant includes an additional, powerful leakage protection that protects your home. It is one of the first smart soft water systems on the market. Perfectly suited for all owners of a DRUFI water filter system, due to the simplest installation on the already existing SYR flange. Easy to monitor and control via LAN or WLAN, using the free SYR app. The decalcification system is DVGW certified & Made in Germany!
- Order number: 1736
- EAN 4260728213700
The intelligent automatic system of the SYR LEX Plus 10 SL Connect ensures that no salt is wasted through economy salting and regeneration only takes place when it is necessary. The entire system is automatically disinfected each time.
The highlight of the model variant SL is the fully integrated leakage protection, which can protect you from the consequences of expensive water damage. The leakage protection and the SYR soft water system interact with each other. If your LEX Plus 10 SL Connect requires water for regeneration, it is reported to the leak protection system, which then releases the appropriate amount of water. For non-integrated solutions, this could potentially trigger a leak alarm. Not so with the SYR system, so you do not have to do anything during the rain!
For more convenient maintenance or longer periods of absence (eg holidays), the water softener can be bypassed without interruption, if necessary. The plant is optimally suitable for single-family homes up to 6 persons.
With the system, a single-family household can save a few hundred euros a year. You save detergents, detergents, shower gel, hair shampoo, decalcifier for household appliances and additional maintenance costs for electrical appliances and installations in your household. Lime settles in pipes or household appliances, as stubborn limestone. This can lead over time to constrictions of the water pipes, to blown heating coils of washing machines and dishwashers, defective water heaters or leaking boilers. In addition, there is no need for hours of cleaning of calcified shower walls, shower cubicles, bathtubs, toilets and sinks.

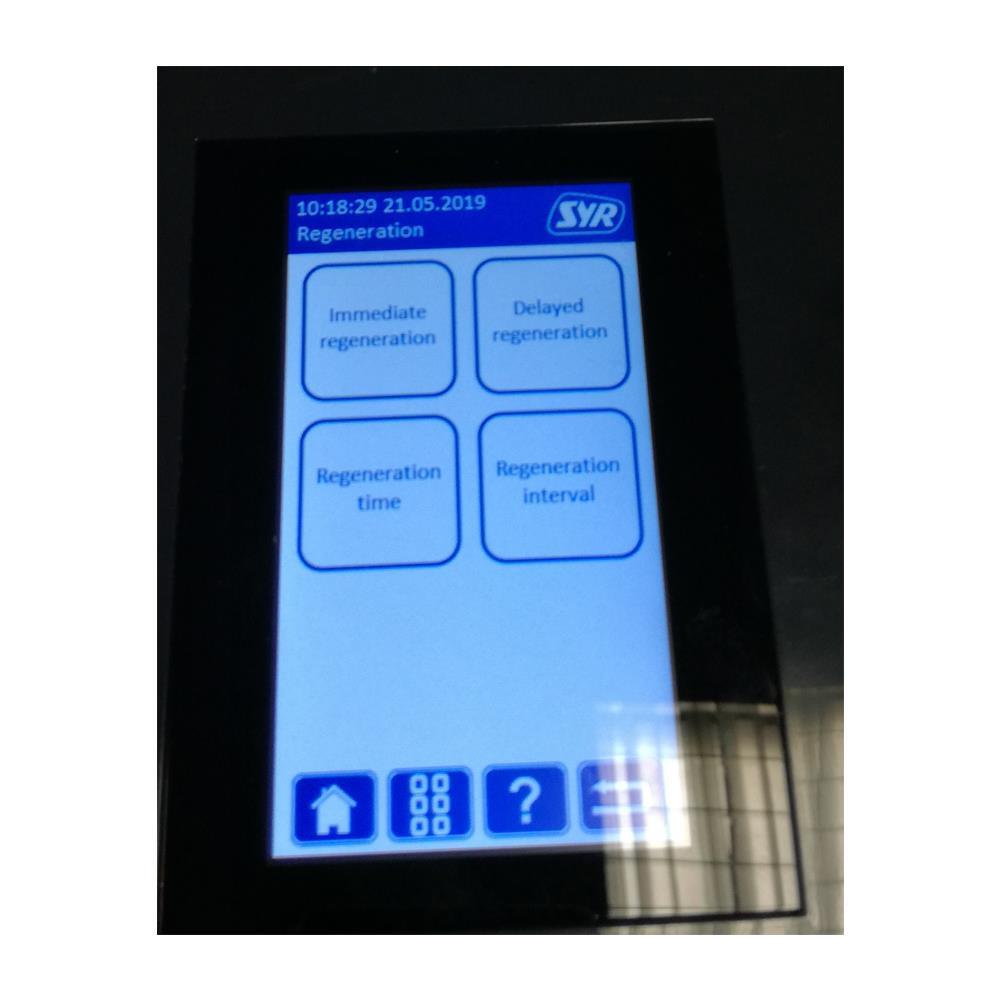

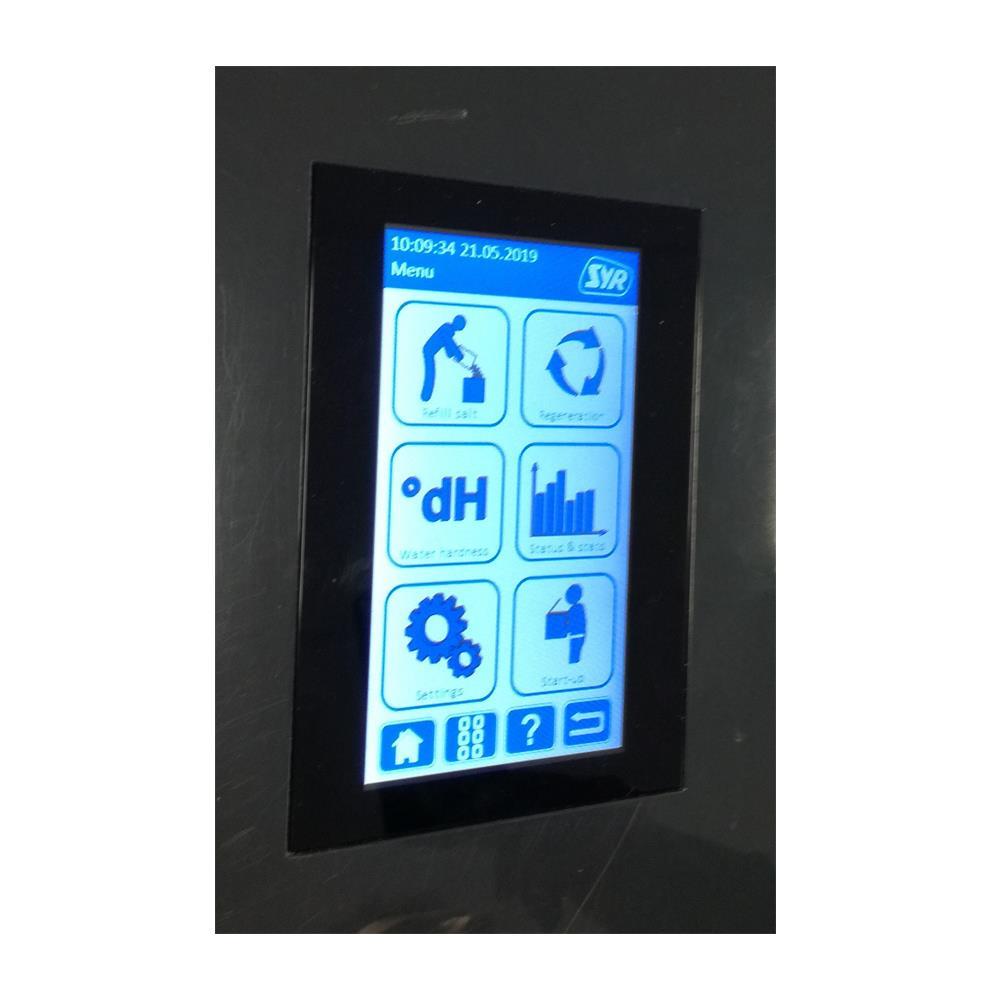

Outstanding is the operating concept of the system with a colored, self-explanatory touch display. The highlight, however, is the digital control option of the system with the SYR Connect APP (available free of charge in the APP Store and on Google Play), which receives frequent updates. So you always know what's going on with your system and can also control your water consumption through the system.
Your water feels noticeably softer. Coffee, tea and food taste better by softening the water!
The advantages of the SYR LEX Plus 10 SL Connect:
- DVGW certified *
- Leakage protection fully integrated
- License for rental and commercial use
- very low environmentally friendly salt consumption per regeneration
- Installation with torsion-free flexible hoses in the plug-in system
- Consumption-dependent, water-saving regeneration
- big softening column
- automatic disinfection
- small space requirement due to compact design
- easiest operation by colored Touchdsiplay
- Control and operation via SYR Connect APP

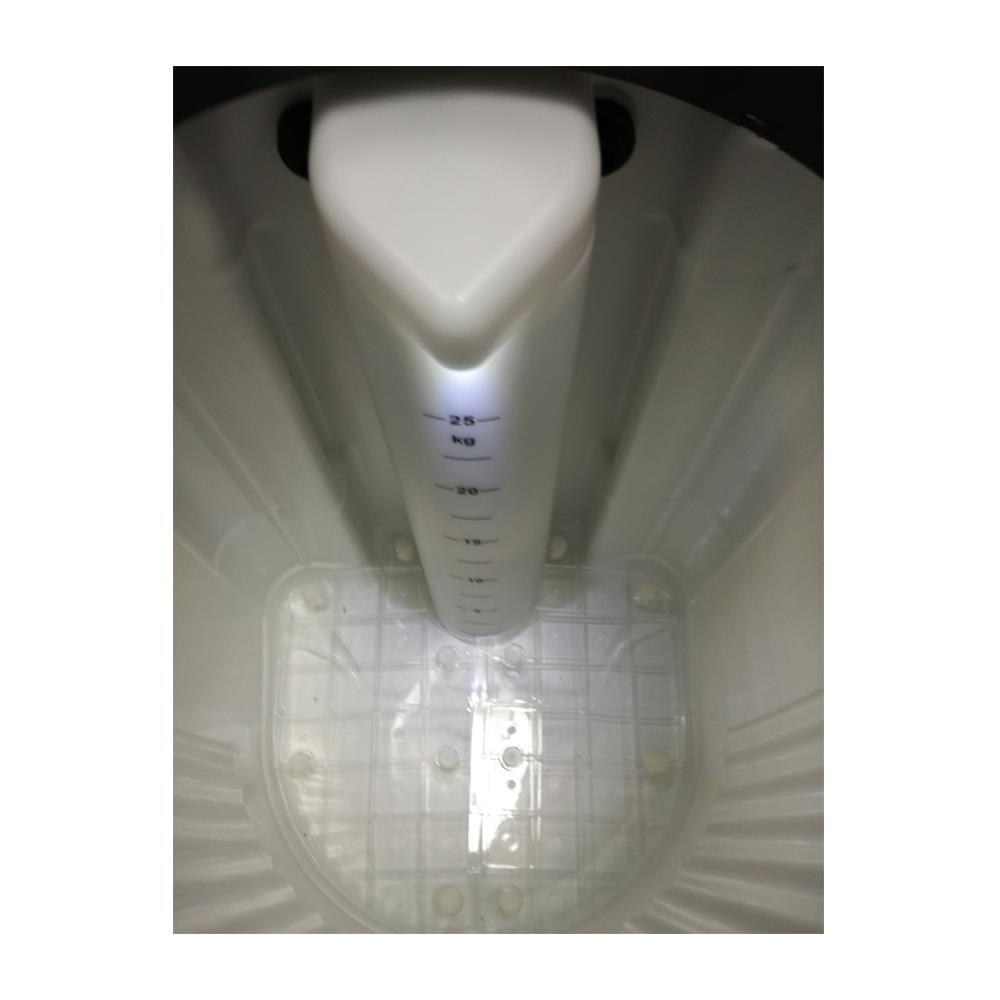

- illuminated salt container for easy, quick visual inspection
- high throughput
- cost-minimizing, robust single column system
- Made in Germany
- nationwide customer service or maintenance by a trained specialist
- protects against Kalkinfarkt of lines and devices
- saves energy
- automatic control
Components and design
The functional parts of the system are made of the highest quality plastic. The housing parts are made of impact-resistant thermoplastic, the rubber parts of age-resistant, durable elastomers. All other functional parts use a low-lead, dezincification-resistant brass alloy and stainless steel. The materials used comply with the recognized rules of technology. The plastic parts and elastomers touched by the water comply with the KTW guideline issued by the Federal Environmental Agency.
A bypass and blending valve is already included in the delivery.
If you already have a drinking water filter from the system DRUFI at the house connection, the connection is extremely easy. There must then be no installation work on the water-bearing system! The decalcification system is then simply screwed into the sandwich (see Figure 2) - DONE! The result is two fittings, a compact filter and softening unit.
And that's how easy it is

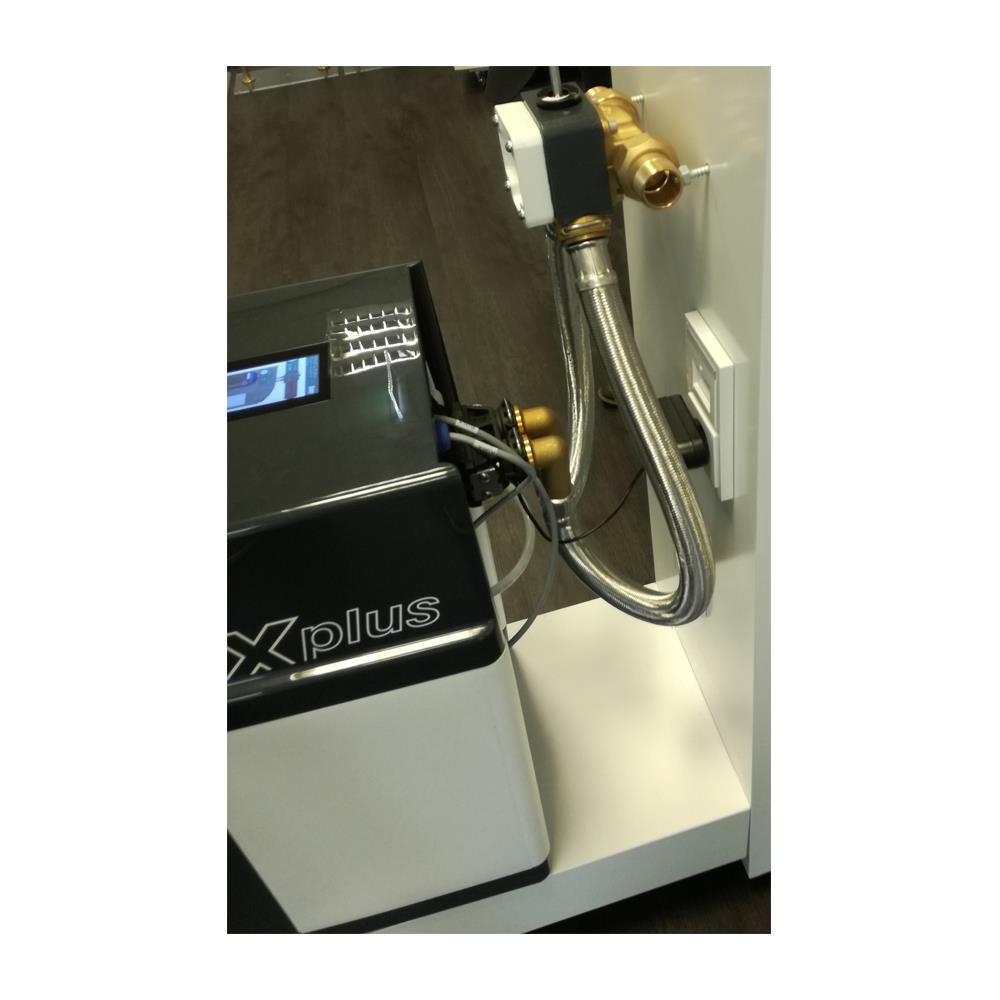

Disconnect the DRUFI, flange the connection fitting with integrated trimming device, refit the DRUFI and connect the two hoses of the LEX Plus 10 SL Connect, no additional flange is required.
The water softening system is installed centrally behind the water meter system. In order to avoid malfunctions, the water softening system is effectively protected by the connection of a drinking water filter (System Drufi). From a pressure of 5 bar, a pressure reducer must be connected in advance. The water to be softened must be clear, free of solid impurities and free of iron and manganese (TWVO values).
Installation, Maintenance & Commissioning
Since the water softener works automatically, you only have to refill salt regularly. In accordance with DIN EN 806, Part 5, maintenance must be carried out at least once a year. A maintenance contract by the specialized trade permanently produces the safe operation function. We would like to explain more about this in a consultation.
Some tips from our side: Please clean the salt container of incrustations at regular intervals and use only high quality salt. According to the Drinking Water Ordinance, regeneration salt in Germany must comply with the purity requirements of: DIN EN 973 Table 1 / Type A / Table 3. These are the most frequent causes of faults in water softening systems and are easy to avoid. This will prevent unnecessary, not insignificant costs that may arise through an installer or the factory customer service!
Paid installation service by a specialized specialist: For the area of ??Central Germany, we can arrange a specialized company, where you usually get an appointment within 2-4 weeks. The costs are performance-related and are negotiated directly with the executing specialist. Details on the installation situation will be clarified in advance. We receive no commission for the mediation! Alternatively and optionally, the Werkskundienst undertakes this work. We are happy to make the contact. Please contact us if this service is interesting for you.
Warranty and guarantee
In compliance with the DIN EN 806, Part 5 and the installation by a sanitary specialist company, the guarantee and warranty on the system is 24 months. If you conclude a maintenance contract, the warranty may be extended to up to 5 years (as the manufacturer is a member of zvshk and is listed there as a handyman brand). You will find more about this on page 21 of the manual in the download area (see below).
Scope of delivery
1x cabinet with salt container, 1x blending valve with flange connection incl. closing flap, 4x screws M6 x 70, 4x safety clamps for connection hoses, 2x connection hoses (length 700mm), 1x rinsing water hose 2m (12x16mm), 3x hose clamp, 1x tension clamp, 1x power plug, 1x drain funnel, 1x hardness measuring set
Note: The item we delivered to avoid transport damage by freight carrier.
* The DVGW - German association of gas and water specialist - stands for the technical self-administration in the gas and water sector. Its technical regulations are the basis for safety and reliability in the German gas and water supply. A DVGW certification is the reliable proof of compliance with the recognized rules of technology. The SYR LEX Plus 10 SL Connect water softener has been DVGW certified. This certificate does not have many devices, and the SYR LEX Plus 10 SL Connect is even licensed for rental or professional use.
Operating pressure: min. 2 bar - max. 8 bar
Nominal pressure: max. 10 bar
Operating temperature: max. 30 ° C
Installation position: vertical
Medium: suitable for drinking water
Flow rate: 2.1 m³ / h
Stock salt container: 25 kg
Resin quantity: 7.5 liters
Nominal capacity: 22 m³ x ° dH
Salt consumption per regeneration: approx. 0.95kg
Electrical connection: 230 V / 50 Hz / 6 W
Device connection: 12V / 50Hz

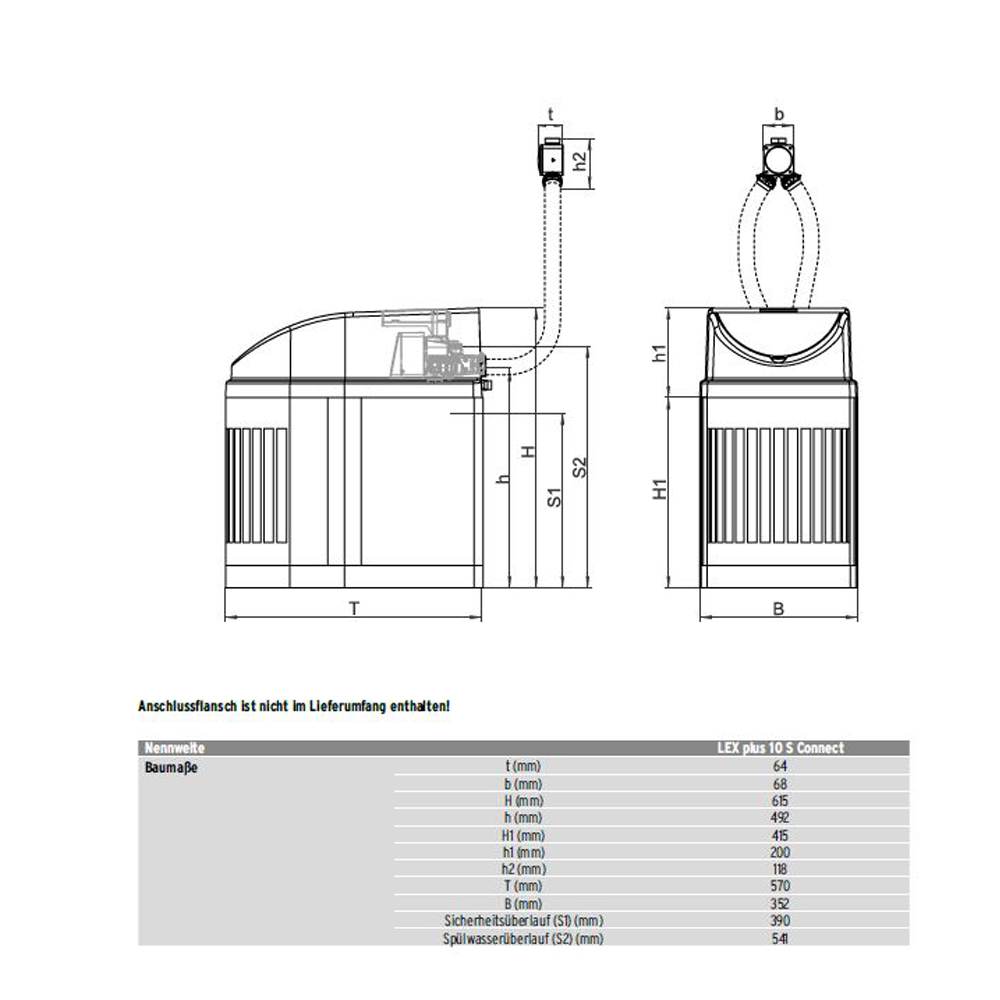

Pack size approx .: H 75cm x W 40 cm x D 62cm
