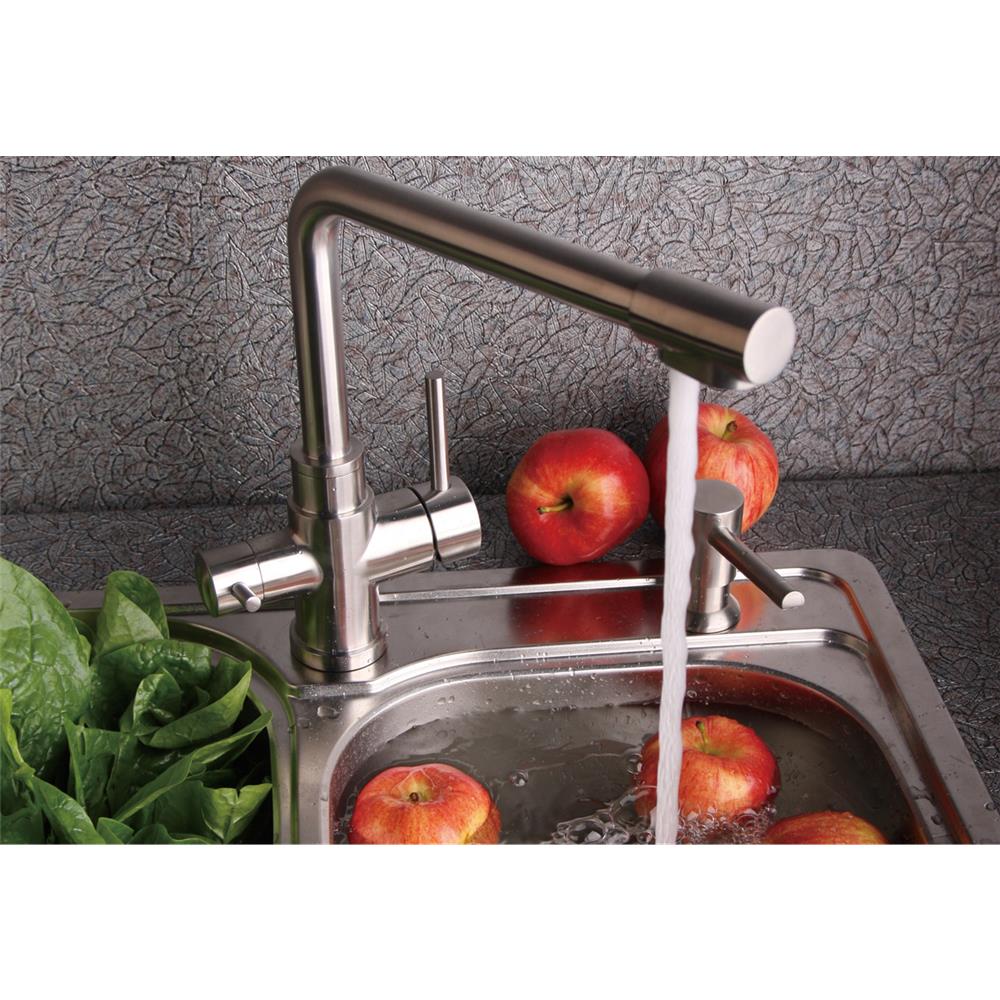

Design Stainless steel three-way faucet

€359.00*

Content: 1 Stück
Stück
Product number: 1097
Manufacturer: Prime Inventions
EAN: 4250188805836
Product information "Design Stainless steel three-way faucet"

For cold, warm and filter water from under table systems.

On the right side is the lever that allows you to switch between hot and cold water. The lever on the left controls the filtered water. The two water pipes for service water and filter water are separated inside and lead into the respective outlet for filter water (smaller) or service water (large). The faucet is characterized by integrated internal jet regulators and 360 ° rotatable outlet pipe.

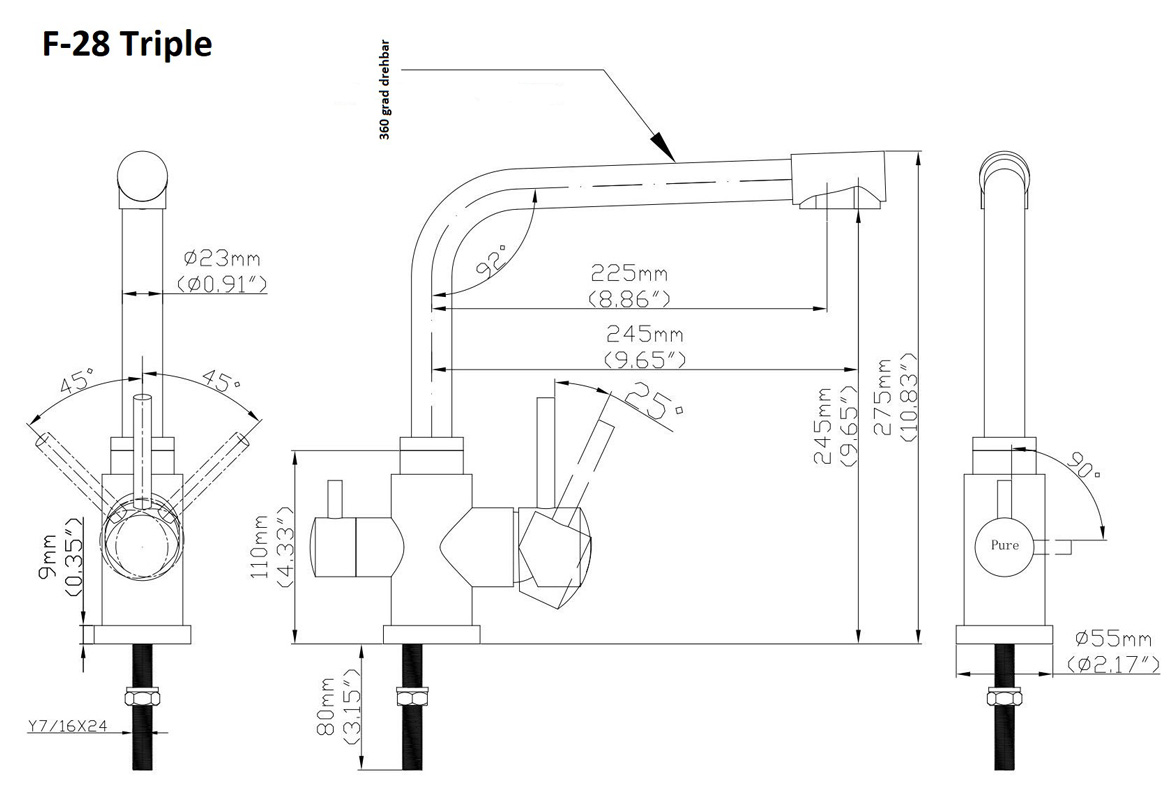

Technical specifications

     Weight: 2.05 kg
     Height from bottom to perlator: 280 mm
     Outfeed of the outlet pipe: 260 mm
     Diameter 44 mm
     Connection: 3/8 "thread by enclosed adapter
     Thread for service water outlet: M24
     Threaded filter water outlet: M18


Scope of delivery: Connection hoses, table mounting disc with accessories



Material: Edelstahl
