The table filter AquaAvanti Doublle is more than an excellent alternative to other known table filter systems, especially if you want to filter contaminants and lime at the same time. In the execution it is extremely solid, equipped with outlet pipe and an outlet pipe holder made of stainless steel. Thanks to the M22x1 thread on the discharge pipe, a water swirler can be connected directly.
- Ordrenummer: 1487-001
- EAN 4260728213052

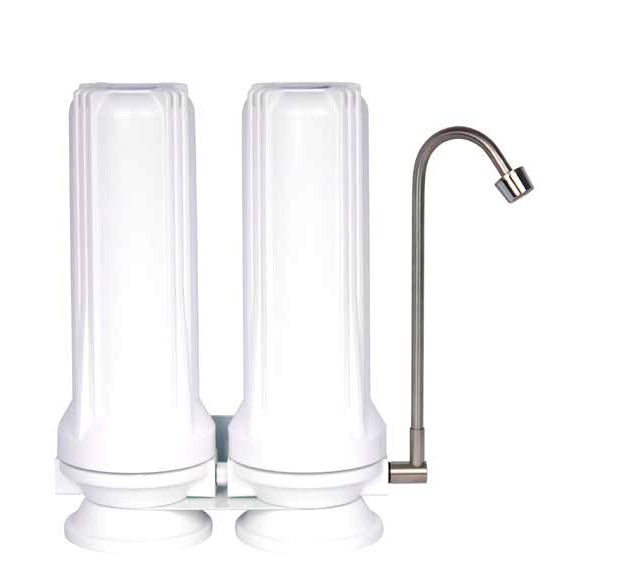

Two-stage table filter AquaAvanti Double with stainless steel spout and filter cartridge EM Premium 5 and optional second cartridge according to your choice and application
The table filter AquaAvanti Double double table filter is more than an excellent alternative to other well-known table filter systems. In the execution it is extremely solid, equipped with outlet pipe and an outlet pipe holder made of stainless steel. Thanks to the M22x1 thread on the discharge pipe, a water vortex can be connected directly.
In the AquaAvanti Double, two filter cartridges can be operated one behind the other to B. use a sediment filter to pre-filter the water or a lime cartridge in addition to water filtration. A wall bracket is supplied, with the help of which the device can be attached to a wall as an option.
Optional second filter cartridge:
EM Premium 5
Together with the proven filter performance of the CARBONIT® NFP Premium filter technology, the ideal water filtration results: EM Ceramic causes, among other things, a reduction in the surface tension of the water and the reduction of the cluster structures. The addition of EM ceramic powder (EM = Effective Microorganisms) in the activated carbon block gives the filter cartridge special properties. The taste of the water appears thereby many users more full-bodied and fresher. The coconut-based activated carbon block filter focuses on the chemical-physical removal of undesirable ingredients in drinking water, eg. by the influences of the house installation.
Service life: The filter cartridge must be replaced after 6 months (according to the german DIN 1988). Basically, within the 6 months 10,000 liters of water may be filtered.
Technical data: Filter fineness: approx. 0.45 µm, flow rate: approx. 2 liters per minute (depending on water pressure), Temperature: Use only with cold water, protect against frost
The filter is provided with antibacterial protection. Due to the special winding, the protection is distributed over a very large area. Upon contact of germs with the protective surface of their propagation process is interrupted. Textile coarse and prefilter z. B. for removal of heavily particulate polluted or polluted (turbidity) input water.
Service life: The filter cartridge must be replaced after 6 months (according to DIN 1988). Basically, within the 6 months 10,000 liters of water may be filtered.
Technical data: Flow rate: approx. 20 liters per minute (depending on water pressure), Temperature: Use only with cold water, protect against frost
The decalcifying cartridge improves the taste of cold and hot drinks (especially to improve the aroma of coffee and tea) and protects household appliances against calcification. The flowed through ion exchange resin reduces the hardness of the water.
Use: The water flow should not exceed about 2 l / min. so that a noticeable decalcification is guaranteed. The possible duration of use depends on the degree of hardness of the input water. Depending on the raw water hardness up to 1,900 l (degree of hardness 5-10 dh) or 450 l (degree of hardness 11-25 dh) can be achieved as static quantity. The granules in the cartridge can be replaced independently. The change is made when the symptoms typical of the calf such as tea skin, aroma loss in tea / coffee or lime deposits on surfaces occur again. According to DIN 1988, a change of granules is required after 6 months at the latest. Here you will find the ion exchange resin for the granule change.
Anti Limescale cartridge
The flowed through catalyst granules works on the seed crystal principle. This precipitate lime is bound to the seed crystals and floats in the water with away. The procedure serves to protect the line and devices. Limescale deposits are easier to remove after use but lime removal does not take place.
Use: The water flow should not exceed about 3 l / min. be. When used with water in drinking water quality without coarse sediments, the catalyst granules holds about 3 years. Coarse impurities in the water can cause the surface of the granulate to clog and require rapid replacement.
The water supply of the table filter is made by means of a supply hose which is connected to the outlet of a standard water tap with M24x1 thread, by means of the metal change-over valve. Delivery only together with an original Carbonit® filter cartridge. As standard, an EM Premium 5 filter cartridge is included. The enclosed gasket fits the CARBONIT® and Prime Inventions filter cartridges: NFP, IFP and EM series of 9 3/4 "size into the housing.
As an alternative and nice connectivity, the new direct connection adapter is ideal. The water is supplied by means of a supply hose, which is connected to the outlet of a standard water tap with M24x1 thread through a metal changeover valve. With the adapter you can connect a table filter with the help of a 3/8 inch armored hose under the sink, directly to the cold water connection valve. A hole through the worktop is necessary, just like a tap.
Important note: Please do not operate on pressureless boilers!
The delivery is basically only together with an original Carbonit® filter cartridge. As standard, an EM Premium 5 filter cartridge is included. Please select the second cartridge in the menu. We have pre-set packages for you :-).
The included gasket will fit all CARBONIT® and Prime Inventions filter cartridges, such as 9¾-inch NFP, IFP and EM series cartridges.
Weight: about 2.390g
Height housing: approx. 330mm
Height to spout: approx. 260mm
Width: approx. 280mm (including spout and hose connection)
Max. Working pressure: 4bar
Temperature working range: 1-45 degrees Celsius
Borehole distance wall mount: approx. 150mm
Application: Water filtration Drinking water, only cold water
Connection: by means of the change-over valve at the outlet of a standard water tap with M24x1 thread
